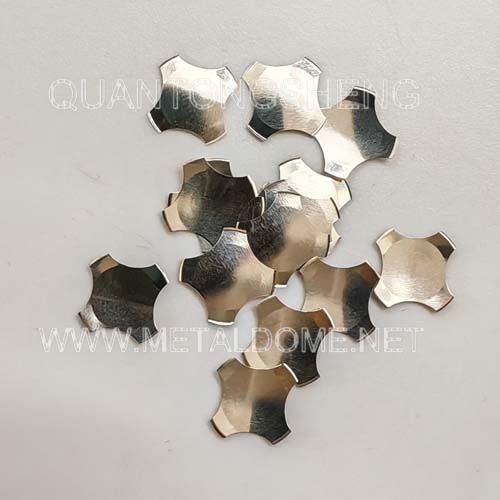

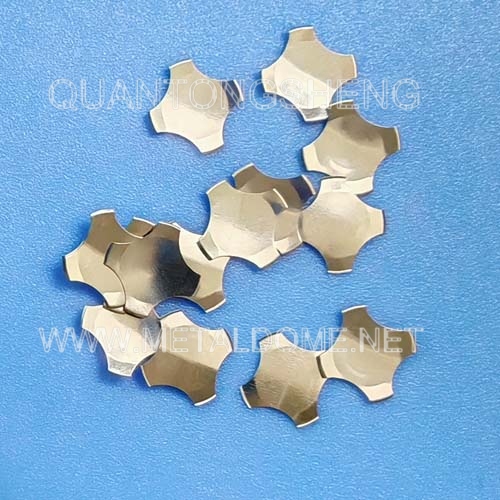

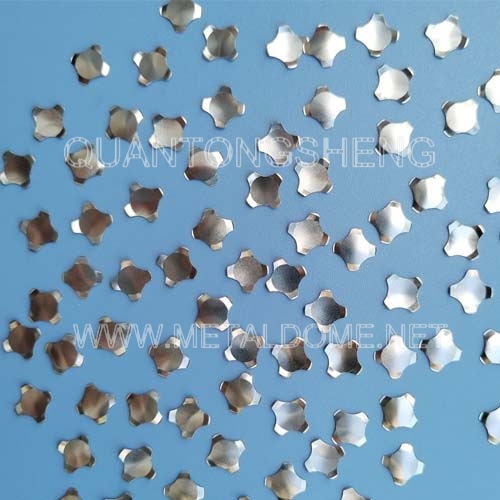

FNN Family Four-Leg Metal Dome
Drawing
Entity
Products list
Trip force Material Height
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 6 | DN6-FNN-140T | Stainless Steel with double-side nickel-plated | 0.06 | 140 | 625152500751515157 |
| 6 | SG6-FNN-140T | Stainless Steel with single-side gold-plated | 0.06 | 140 | 132023217620202026 |
| 6 | 6-FNN-140T | Stainless Steel | 0.06 | 140 | 536063613660606066 |
| 6 | DN6-FNN-180T | Stainless Steel with double-side nickel-plated | 0.06 | 180 | 0e3d3e3c6b3d3d3d39 |
| 6 | SG6-FNN-180T | Stainless Steel with single-side gold-plated | 0.06 | 180 | 102320227523232327 |
| 6 | 6-FNN-180T | Stainless Steel | 0.06 | 180 | 497a797b2c7a7a7a7e |
| 7 | DN7-FNN-180T | Stainless Steel with double-side nickel-plated | 0.08 | 180 | 0c3f3c3e693f3f3f34 |
| 7 | DN7-FNN-200T | Stainless Steel with double-side nickel-plated | 0.08 | 200 | 45767577207676767c |
| 7 | DN7-FNN-250T | Stainless Steel with double-side nickel-plated | 0.08 | 250 | 241714164117101715 |
| 7 | DN7-FNN-280T | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 516261633462656263 |
| 7 | DN7-FNN-340T | Stainless Steel with double-side nickel-plated | 0.08 | 340 | 112221237422252225 |
| 8.4 | DN8.4-FNN-160T | Stainless Steel with double-side nickel-plated | 0.08 | 160 | 4b787b792e787e |
| 8.4 | 8.4-FNN-160T | Stainless Steel | 0.08 | 160 | 2f1c1f1d4a1c1a |
| 8.4 | DN8.4-FNN-180T | Stainless Steel with double-side nickel-plated | 0.08 | 180 | 370407055204020406 |
| 8.4 | SG8.4-FNN-180T | Stainless Steel with single-side gold-plated | 0.08 | 180 | 3b080b095e080e080a |
| 8.4 | 8.4-FNN-180T | Stainless Steel | 0.08 | 180 | 477477752274727476 |
| 8.4 | DN8.4-FNN-220T | Stainless Steel with double-side nickel-plated | 0.08 | 220 | 152625277026202627 |
| 8.4 | SG8.4-FNN-220T | Stainless Steel with single-side gold-plated | 0.08 | 220 | 3f0c0f0d5a0c0a0c0d |
| 8.4 | 8.4-FNN-220T | Stainless Steel | 0.08 | 220 | 192a292b7c2a2c2a2b |
| 8.4 | DN8.4-FNN-280T | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 380b080a5d0b0d0b0c |
| 8.4 | SG8.4-FNN-280T | Stainless Steel with single-side gold-plated | 0.08 | 280 | 152625277026202621 |
| 8.4 | 8.4-FNN-280T | Stainless Steel | 0.08 | 280 | 1f2c2f2d7a2c2a2c2b |
| 8.4 | DN8.4-FNN-340T10 | Stainless Steel with double-side nickel-plated | 0.10 | 340 | 5b686b693e686e686d |
| 8.4 | 8.4-FNN-340T10 | Stainless Steel | 0.10 | 340 | 350605075006000603 |
| 8.4 | DN8.4-FNN-400T08 | Stainless Steel with double-side nickel-plated | 0.08 | 400 | 5f6c6f6d3a6c6a6c6a |
| 8.4 | DN8.4-FNN-400T | Stainless Steel with double-side nickel-plated | 0.1 | 400 | 2b181b194e181e181e |
| 10 | DN10-FNN-200T | Stainless Steel with double-side nickel-plated | 0.1 | 200 | 4a797a782f797e7972 |
| 10 | SG10-FNN-200T | Stainless Steel with single-side gold-plated | 0.1 | 200 | 1b282b297e282f2823 |
| 10 | 10-FNN-200T | Stainless Steel | 0.1 | 200 | 2d1e1d1f481e191e15 |
| 10 | DN10-FNN-280T | Stainless Steel with double-side nickel-plated | 0.1 | 280 | 526162603761676163 |
| 10 | SG10-FNN-280T | Stainless Steel with single-side gold-plated | 0.1 | 280 | 4f7c7f7d2a7c7a7c7e |
| 10 | 10-FNN-280T | Stainless Steel | 0.1 | 280 | 526162603761676163 |
| 10 | DN10-FNN-340T | Stainless Steel with double-side nickel-plated | 0.1 | 340 | 586b686a3d6b6d6b6b |
| 10 | SG10-FNN-340T | Stainless Steel with single-side gold-plated | 0.1 | 340 | 437073712670767070 |
| 10 | 10-FNN-340T | Stainless Steel | 0.1 | 340 | 2b181b194e181e1818 |
| 10 | DN10-FNN-400T | Stainless Steel with double-side nickel-plated | 0.1 | 400 | 281b181a4d1b1d1b1f |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 6 | DN6-FNN-140T | Stainless Steel with double-side nickel-plated | 0.06 | 140 | 3d0e0d0f580e0e0e08 |
| 6 | SG6-FNN-140T | Stainless Steel with single-side gold-plated | 0.06 | 140 | 1d2e2d2f782e2e2e28 |
| 6 | 6-FNN-140T | Stainless Steel | 0.06 | 140 | 300300025503030305 |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 8.4 | DN8.4-FNN-160T | Stainless Steel with double-side nickel-plated | 0.08 | 160 | 3a090a085f090f |
| 8.4 | 8.4-FNN-160T | Stainless Steel | 0.08 | 160 | 3c0f0c0e590f09 |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 6 | DN6-FNN-180T | Stainless Steel with double-side nickel-plated | 0.06 | 180 | 467576742375757571 |
| 6 | SG6-FNN-180T | Stainless Steel with single-side gold-plated | 0.06 | 180 | 625152500751515155 |
| 6 | 6-FNN-180T | Stainless Steel | 0.06 | 180 | 3b080b095e0808080c |
| 7 | DN7-FNN-180T | Stainless Steel with double-side nickel-plated | 0.08 | 180 | 1f2c2f2d7a2c2c2c27 |
| 8.4 | DN8.4-FNN-180T | Stainless Steel with double-side nickel-plated | 0.08 | 180 | 231013114610161012 |
| 8.4 | SG8.4-FNN-180T | Stainless Steel with single-side gold-plated | 0.08 | 180 | 350605075006000604 |
| 8.4 | 8.4-FNN-180T | Stainless Steel | 0.08 | 180 | 576467653264626466 |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 7 | DN7-FNN-200T | Stainless Steel with double-side nickel-plated | 0.08 | 200 | 26151614431515151f |
| 10 | DN10-FNN-200T | Stainless Steel with double-side nickel-plated | 0.1 | 200 | 33000301560007000b |
| 10 | SG10-FNN-200T | Stainless Steel with single-side gold-plated | 0.1 | 200 | 3c0f0c0e590f080f04 |
| 10 | 10-FNN-200T | Stainless Steel | 0.1 | 200 | 1c2f2c2e792f282f24 |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 8.4 | DN8.4-FNN-220T | Stainless Steel with double-side nickel-plated | 0.08 | 220 | 477477752274727475 |
| 8.4 | SG8.4-FNN-220T | Stainless Steel with single-side gold-plated | 0.08 | 220 | 291a191b4c1a1c1a1b |
| 8.4 | 8.4-FNN-220T | Stainless Steel | 0.08 | 220 | 2c1f1c1e491f191f1e |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 7 | DN7-FNN-250T | Stainless Steel with double-side nickel-plated | 0.08 | 250 | 4e7d7e7c2b7d7a7d7f |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 7 | DN7-FNN-280T | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 142724267127202726 |
| 8.4 | DN8.4-FNN-280T | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 3f0c0f0d5a0c0a0c0b |
| 8.4 | SG8.4-FNN-280T | Stainless Steel with single-side gold-plated | 0.08 | 280 | 487b787a2d7b7d7b7c |
| 8.4 | 8.4-FNN-280T | Stainless Steel | 0.08 | 280 | 5c6f6c6e396f696f68 |
| 10 | DN10-FNN-280T | Stainless Steel with double-side nickel-plated | 0.1 | 280 | 5a696a683f696f696b |
| 10 | SG10-FNN-280T | Stainless Steel with single-side gold-plated | 0.1 | 280 | 625152500751575153 |
| 10 | 10-FNN-280T | Stainless Steel | 0.1 | 280 | 281b181a4d1b1d1b19 |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 7 | DN7-FNN-340T | Stainless Steel with double-side nickel-plated | 0.08 | 340 | 447774762177707770 |
| 8.4 | DN8.4-FNN-340T10 | Stainless Steel with double-side nickel-plated | 0.10 | 340 | 556665673066606663 |
| 8.4 | 8.4-FNN-340T10 | Stainless Steel | 0.10 | 340 | 0f3c3f3d6a3c3a3c39 |
| 10 | DN10-FNN-340T | Stainless Steel with double-side nickel-plated | 0.1 | 340 | 5d6e6d6f386e686e6e |
| 10 | SG10-FNN-340T | Stainless Steel with single-side gold-plated | 0.1 | 340 | 211211134412141212 |
| 10 | 10-FNN-340T | Stainless Steel | 0.1 | 340 | 350605075006000606 |
Your Favorites list is full. Your bookmark list has reached 25 items. The maximum capacity is 25. Please delete other unnecessary bookmarks. Link Manage all bookmarks. The favorites list is already empty; no deletion action is required. Clear all favorites? All current favorites will not be retained! Yes No Clear all favorites All favorites have been cleared. Please refresh the current page. Empty all favorites list and then init favorites list The count of favorites list Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
| 8.4 | DN8.4-FNN-400T08 | Stainless Steel with double-side nickel-plated | 0.08 | 400 | 4f7c7f7d2a7c7a7c7a |
| 8.4 | DN8.4-FNN-400T | Stainless Steel with double-side nickel-plated | 0.1 | 400 | 4d7e7d7f287e787e78 |
| 10 | DN10-FNN-400T | Stainless Steel with double-side nickel-plated | 0.1 | 400 | 615251530452545256 |
