English TDF Family Triangle Metal Dome
Drawing

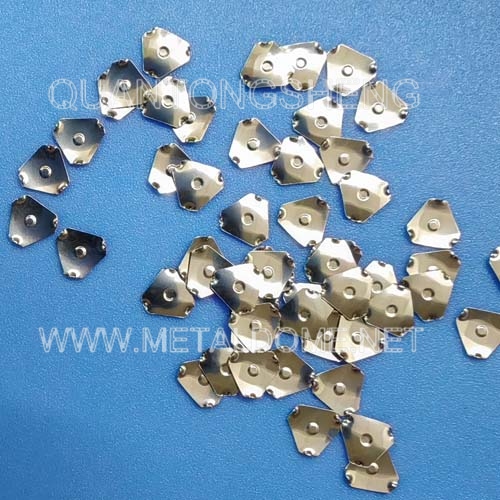

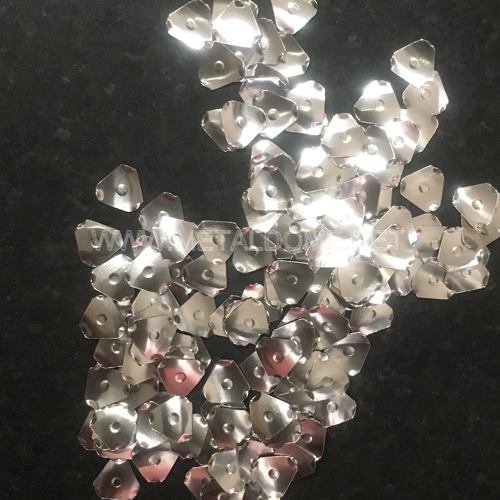

Entity
Products list
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 4 | 4-TDF-160 | Stainless Steel | 0.06 | 160 | 22111210471111 |
| 5 | 5-TDF-160 | Stainless Steel | 0.06 | 160 | 122122207721262121 |
| 5 | 5-TDF-160(CHIS) | Stainless Steel | 0.06 | 160 | 2c1f1c1e491f181f1f |
| 5 | SG5-TDF-200 | Stainless Steel with single-side gold-plated | 0.06 | 200 | 291a191b4c1a1d1a1d |
| 5 | 5-TDF-200 | Stainless Steel | 0.06 | 200 | 0f3c3f3d6a3c3b3c39 |
| 5 | DN5-TDF-300 | Stainless Steel with double-side nickel-plated | 0.06 | 300 | 4f7c7f7d2a7c7b7c76 |
| 5 | 5-TDF-300 | Stainless Steel | 0.06 | 300 | 34070406510701 |
| 6 | 6-TDF-180 | Stainless Steel | 0.06 | 180 | 172427257224232422 |
| 6 | 6-TDF-200 | Stainless Steel | 0.06 | 200 | 3e0d0e0c5b0d0a0d06 |
| 6 | 6-TDF-280 | Stainless Steel | 0.08 | 280 | 261516144315131514 |
| 6 | DN6-TDF-300 | Stainless Steel with double-side nickel-plated | 0.08 | 300 | 57646765326462 |
| 6 | SG6-TDF-300 | Stainless Steel with single-side gold-plated | 0.08 | 300 | 162526247325232524 |
| 6 | 6-TDF-300 | Stainless Steel | 0.08 | 300 | 457675772076707677 |
| 6 | 6-TDF-350 | Stainless Steel | 0.08 | 350 | 407370722573757374 |
| 6 | SG6-TDF-400 | Stainless Steel with single-side gold-plated | 0.08 | 400 | 0e3d3e3c6b3d3b3d36 |
| 6 | 6-TDF-400 | Stainless Steel | 0.08 | 400 | 310201035402040206 |
| 6 | A6-TDF-400 | Stainless Steel | 0.08 | 450 | 3a090a085f090f0902 |
| 6 | 6-TDF-500 | Stainless Steel | 0.08 | 500 | 162526247325232521 |
| 7 | DN7-TDF-120 | Stainless Steel with double-side nickel-plated | 0.08 | 120 | 4d7e7d7f287e7e7e74 |
| 7 | 7-TDF-120 | Stainless Steel | 0.06 | 120 | 417271732472727278 |
| 7 | 7-TDF-200 | Stainless Steel | 0.08 | 200 | 2d1e1d1f481e191e18 |
| 7 | 7-TDF-230 | Stainless Steel | 0.08 | 230 | 586b686a3d6b6c6b6f |
| 7 | 7-TDF-280 | Stainless Steel | 0.08 | 280 | 23101311461017101b |
| 7 | DN7-TDF-300 | Stainless Steel with double-side nickel-plated | 0.08 | 300 | 25161517401611161c |
| 7 | 7-TDF-300 | Stainless Steel | 0.08 | 300 | 64575456015751 |
| 7 | 7-TDF-350 | Stainless Steel | 0.08 | 350 | 506360623563656365 |
| 7 | SG7-TDF-400 | Stainless Steel with single-side gold-plated | 0.08 | 400 | 5c6f6c6e396f6a |
| 7 | 7-TDF-400 | Stainless Steel | 0.08 | 400 | 5b686b693e686e6863 |
| 7 | 7-TDF-500 | Stainless Steel | 0.08 | 500 | 5e6d6e6c3b6d6b6d66 |
| 8 | 8-TDF-230 | Stainless Steel | 0.08 | 230 | 360506045305030502 |
| 8 | 8-TDF-240 | Stainless Steel | 0.08 | 240 | 192a292b7c2a2c2a2b |
| 8 | DN8-TDF-280 | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 457675772076707673 |
| 8 | SG8-TDF-280 | Stainless Steel with single-side gold-plated | 0.08 | 280 | 645754560157515753 |
| 8 | 8-TDF-280 | Stainless Steel | 0.08 | 280 | 4b787b792e787e787e |
| 8 | 8-TDF-300 | Stainless Steel | 0.08 | 300 | 5c6f6c6e396f696f6b |
| 8 | DN8-TDF-350 | Stainless Steel with double-side nickel-plated | 0.08 | 350 | 2c1f1c1e491f191f14 |
| 8 | SG8-TDF-350 | Stainless Steel with single-side gold-plated | 0.08 | 350 | 281b181a4d1b1d1b11 |
| 8 | 8-TDF-350 | Stainless Steel | 0.08 | 350 | 55666567306660666d |
| 8 | DN8-TDF-400 | Stainless Steel with double-side nickel-plated | 0.08 | 400 | 605350520553565353 |
| 8 | 8-TDF-400 | Stainless Steel | 0.08 | 400 | 5f6c6f6d3a6c696c6c |
| 8 | SG8-TDF-450 | Stainless Steel with single-side gold-plated | 0.08 | 450 | 576467653264616460 |
| 8 | 8-TDF-450 | Stainless Steel | 0.08 | 450 | 380b080a5d0b0e0b0d |
| 8 | 8-TDF-550 | Stainless Steel | 0.08 | 550 | 112221237422272229 |
| 9 | DN9-TDF-150 | Stainless Steel with double-side nickel-plated | 0.08 | 150 | 33000301560007000a |
| 9 | 9-TDF-150 | Stainless Steel | 0.08 | 150 | 4e7d7e7c2b7d7b |
| 9 | 9-TDF-200 | Stainless Steel | 0.08 | 200 | 22111210471117 |
| 9 | DN9-TDF-240 | Stainless Steel with double-side nickel-plated | 0.08 | 240 | 516261633462646267 |
| 9 | 9-TDF-240 | Stainless Steel | 0.08 | 240 | 546764663167616760 |
| 9 | DN9-TDF-280 | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 1c2f2c2e792f2a |
| 9 | 9-TDF-280 | Stainless Steel | 0.08 | 280 | 390a090b5c0a0c0a00 |
| 9 | SG9-TDF-300 | Stainless Steel with single-side gold-plated | 0.08 | 300 | 46757674237573757f |
| 9 | DN9-TDF-350 | Stainless Steel with double-side nickel-plated | 0.08 | 350 | 23101311461015 |
| 9 | 9-TDF-350 | Stainless Steel | 0.08 | 350 | 0d3e3d3f683e3b3e3f |
| 9 | SG9-TDF-450 | Stainless Steel with single-side gold-plated | 0.08 | 450 | 2d1e1d1f481e1b1e15 |
| 9 | 9-TDF-480 | Stainless Steel | 0.1 | 480 | 566566643365606561 |
| 10 | 10-TDF-180 | Stainless Steel | 0.08 | 180 | 605350520553555352 |
| 10 | 10-TDF-240 | Stainless Steel | 0.1 | 240 | 231013114610161010 |
| 10 | DN10-TDF-280 | Stainless Steel with double-side nickel-plated | 0.1 | 280 | 605350520553555355 |
| 10 | SG10-TDF-280 | Stainless Steel with single-side gold-plated | 0.1 | 280 | 55666567306660666d |
| 10 | 10-TDF-280 | Stainless Steel | 0.1 | 280 | 350605075006000600 |
| 10 | SG10-TDF-300 | Stainless Steel with single-side gold-plated | 0.1 | 300 | 310201035402040208 |
| 10 | DN10-TDF-350 | Stainless Steel with double-side nickel-plated | 0.1 | 350 | 615251530452545256 |
| 10 | SG10-TDF-350 | Stainless Steel with single-side gold-plated | 0.1 | 350 | 5e6d6e6c3b6d68 |
| 10 | 10-TDF-350 | Stainless Steel | 0.1 | 350 | 536063613660666064 |
| 10 | DN10-TDF-400 | Stainless Steel with double-side nickel-plated | 0.1 | 400 | 172427257224212426 |
| 10 | SG10-TDF-400 | Stainless Steel with single-side gold-plated | 0.1 | 400 | 251615174016131616 |
| 10 | 10-TDF-400 | Stainless Steel | 0.1 | 400 | 506360623563656369 |
| 10 | 10-TDF-450 | Stainless Steel | 0.1 | 450 | 3d0e0d0f580e0b0e0e |
| 10 | 10-TDF-550 | Stainless Steel | 0.1 | 550 | 63505351065054 |
| 12 | DN12-TDF-200 | Stainless Steel with double-side nickel-plated | 0.12 | 200 | 30030002550306 |
| 12 | 12-TDF-200 | Stainless Steel | 0.12 | 200 | 5e6d6e6c3b6d68 |
| 12 | 12-TDF-240 | Stainless Steel | 0.12 | 240 | 4e7d7e7c2b7d787d7f |
| 12 | DN12-TDF-280 | Stainless Steel with double-side nickel-plated | 0.12 | 280 | 300300025503060302 |
| 12 | 12-TDF-280 | Stainless Steel | 0.12 | 280 | 320102005701040100 |
| 12 | 12-TDF-340 | Stainless Steel | 0.12 | 340 | 310201035402070204 |
| 12 | DN12-TDF-350 | Stainless Steel with double-side nickel-plated | 0.12 | 350 | 2b181b194e181d181e |
| 12 | 12-TDF-350 | Stainless Steel | 0.12 | 350 | 211211134412171214 |
| 12 | SG12-TDF-400 | Stainless Steel with single-side gold-plated | 0.12 | 400 | 380b080a5d0b0e0b0f |
| 12 | 12-TDF-400 | Stainless Steel | 0.12 | 400 | 586b686a3d6b6e6b6e |
| 15.2 | DN15.2-TDF-450 | Stainless Steel with double-side nickel-plated | 0.12 | 450 | 211211134412161214 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 7 | DN7-TDF-120 | Stainless Steel with double-side nickel-plated | 0.08 | 120 | 56656664336565656f |
| 7 | 7-TDF-120 | Stainless Steel | 0.06 | 120 | 2e1d1e1c4b1d1d1d17 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 9 | DN9-TDF-150 | Stainless Steel with double-side nickel-plated | 0.08 | 150 | 0b383b396e383f3832 |
| 9 | 9-TDF-150 | Stainless Steel | 0.08 | 150 | 3c0f0c0e590f09 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 4 | 4-TDF-160 | Stainless Steel | 0.06 | 160 | 10232022752323 |
| 5 | 5-TDF-160 | Stainless Steel | 0.06 | 160 | 615251530452555252 |
| 5 | 5-TDF-160(CHIS) | Stainless Steel | 0.06 | 160 | 586b686a3d6b6c6b6b |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 6 | 6-TDF-180 | Stainless Steel | 0.06 | 180 | 487b787a2d7b7c7b7d |
| 10 | 10-TDF-180 | Stainless Steel | 0.08 | 180 | 4d7e7d7f287e787e7f |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 5 | SG5-TDF-200 | Stainless Steel with single-side gold-plated | 0.06 | 200 | 1a292a287f292e292e |
| 5 | 5-TDF-200 | Stainless Steel | 0.06 | 200 | 566566643365626560 |
| 6 | 6-TDF-200 | Stainless Steel | 0.06 | 200 | 1f2c2f2d7a2c2b2c27 |
| 7 | 7-TDF-200 | Stainless Steel | 0.08 | 200 | 536063613660676066 |
| 9 | 9-TDF-200 | Stainless Steel | 0.08 | 200 | 5c6f6c6e396f69 |
| 12 | DN12-TDF-200 | Stainless Steel with double-side nickel-plated | 0.12 | 200 | 2c1f1c1e491f1a |
| 12 | 12-TDF-200 | Stainless Steel | 0.12 | 200 | 1f2c2f2d7a2c29 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 7 | 7-TDF-230 | Stainless Steel | 0.08 | 230 | 477477752274737470 |
| 8 | 8-TDF-230 | Stainless Steel | 0.08 | 230 | 320102005701070106 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 8 | 8-TDF-240 | Stainless Steel | 0.08 | 240 | 576467653264626465 |
| 9 | DN9-TDF-240 | Stainless Steel with double-side nickel-plated | 0.08 | 240 | 112221237422242227 |
| 9 | 9-TDF-240 | Stainless Steel | 0.08 | 240 | 536063613660666067 |
| 10 | 10-TDF-240 | Stainless Steel | 0.1 | 240 | 635053510650565050 |
| 12 | 12-TDF-240 | Stainless Steel | 0.12 | 240 | 2c1f1c1e491f1a1f1d |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 6 | 6-TDF-280 | Stainless Steel | 0.08 | 280 | 251615174016101617 |
| 7 | 7-TDF-280 | Stainless Steel | 0.08 | 280 | 4e7d7e7c2b7d7a7d76 |
| 8 | DN8-TDF-280 | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 1f2c2f2d7a2c2a2c29 |
| 8 | SG8-TDF-280 | Stainless Steel with single-side gold-plated | 0.08 | 280 | 350605075006000602 |
| 8 | 8-TDF-280 | Stainless Steel | 0.08 | 280 | 635053510650565056 |
| 9 | DN9-TDF-280 | Stainless Steel with double-side nickel-plated | 0.08 | 280 | 45767577207673 |
| 9 | 9-TDF-280 | Stainless Steel | 0.08 | 280 | 44777476217771777d |
| 10 | DN10-TDF-280 | Stainless Steel with double-side nickel-plated | 0.1 | 280 | 497a797b2c7a7c7a7c |
| 10 | SG10-TDF-280 | Stainless Steel with single-side gold-plated | 0.1 | 280 | 0b383b396e383e3833 |
| 10 | 10-TDF-280 | Stainless Steel | 0.1 | 280 | 556665673066606660 |
| 12 | DN12-TDF-280 | Stainless Steel with double-side nickel-plated | 0.12 | 280 | 201310124513161312 |
| 12 | 12-TDF-280 | Stainless Steel | 0.12 | 280 | 281b181a4d1b1e1b1a |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 5 | DN5-TDF-300 | Stainless Steel with double-side nickel-plated | 0.06 | 300 | 4c7f7c7e297f787f75 |
| 5 | 5-TDF-300 | Stainless Steel | 0.06 | 300 | 61525153045254 |
| 6 | DN6-TDF-300 | Stainless Steel with double-side nickel-plated | 0.08 | 300 | 27141715421412 |
| 6 | SG6-TDF-300 | Stainless Steel with single-side gold-plated | 0.08 | 300 | 2c1f1c1e491f191f1e |
| 6 | 6-TDF-300 | Stainless Steel | 0.08 | 300 | 5d6e6d6f386e686e6f |
| 7 | DN7-TDF-300 | Stainless Steel with double-side nickel-plated | 0.08 | 300 | 0a393a386f393e3933 |
| 7 | 7-TDF-300 | Stainless Steel | 0.08 | 300 | 2d1e1d1f481e18 |
| 8 | 8-TDF-300 | Stainless Steel | 0.08 | 300 | 3f0c0f0d5a0c0a0c08 |
| 9 | SG9-TDF-300 | Stainless Steel with single-side gold-plated | 0.08 | 300 | 3a090a085f090f0903 |
| 10 | SG10-TDF-300 | Stainless Steel with single-side gold-plated | 0.1 | 300 | 291a191b4c1a1c1a10 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 12 | 12-TDF-340 | Stainless Steel | 0.12 | 340 | 281b181a4d1b1e1b1d |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 6 | 6-TDF-350 | Stainless Steel | 0.08 | 350 | 2d1e1d1f481e181e19 |
| 7 | 7-TDF-350 | Stainless Steel | 0.08 | 350 | 3d0e0d0f580e080e08 |
| 8 | DN8-TDF-350 | Stainless Steel with double-side nickel-plated | 0.08 | 350 | 4a797a782f797f7972 |
| 8 | SG8-TDF-350 | Stainless Steel with single-side gold-plated | 0.08 | 350 | 3c0f0c0e590f090f05 |
| 8 | 8-TDF-350 | Stainless Steel | 0.08 | 350 | 5a696a683f696f6962 |
| 9 | DN9-TDF-350 | Stainless Steel with double-side nickel-plated | 0.08 | 350 | 36050604530500 |
| 9 | 9-TDF-350 | Stainless Steel | 0.08 | 350 | 142724267127222726 |
| 10 | DN10-TDF-350 | Stainless Steel with double-side nickel-plated | 0.1 | 350 | 556665673066606662 |
| 10 | SG10-TDF-350 | Stainless Steel with single-side gold-plated | 0.1 | 350 | 25161517401613 |
| 10 | 10-TDF-350 | Stainless Steel | 0.1 | 350 | 0d3e3d3f683e383e3a |
| 12 | DN12-TDF-350 | Stainless Steel with double-side nickel-plated | 0.12 | 350 | 487b787a2d7b7e7b7d |
| 12 | 12-TDF-350 | Stainless Steel | 0.12 | 350 | 566566643365606563 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 6 | SG6-TDF-400 | Stainless Steel with single-side gold-plated | 0.08 | 400 | 310201035402040209 |
| 6 | 6-TDF-400 | Stainless Steel | 0.08 | 400 | 162526247325232521 |
| 7 | SG7-TDF-400 | Stainless Steel with single-side gold-plated | 0.08 | 400 | 27141715421411 |
| 7 | 7-TDF-400 | Stainless Steel | 0.08 | 400 | 34070406510701070c |
| 8 | DN8-TDF-400 | Stainless Steel with double-side nickel-plated | 0.08 | 400 | 4d7e7d7f287e7b7e7e |
| 8 | 8-TDF-400 | Stainless Steel | 0.08 | 400 | 2b181b194e181d1818 |
| 10 | DN10-TDF-400 | Stainless Steel with double-side nickel-plated | 0.1 | 400 | 142724267127222725 |
| 10 | SG10-TDF-400 | Stainless Steel with single-side gold-plated | 0.1 | 400 | 330003015600050000 |
| 10 | 10-TDF-400 | Stainless Steel | 0.1 | 400 | 47747775227472747e |
| 12 | SG12-TDF-400 | Stainless Steel with single-side gold-plated | 0.12 | 400 | 586b686a3d6b6e6b6f |
| 12 | 12-TDF-400 | Stainless Steel | 0.12 | 400 | 635053510650555055 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 6 | A6-TDF-400 | Stainless Steel | 0.08 | 450 | 15262527702620262d |
| 8 | SG8-TDF-450 | Stainless Steel with single-side gold-plated | 0.08 | 450 | 536063613660656064 |
| 8 | 8-TDF-450 | Stainless Steel | 0.08 | 450 | 2b181b194e181d181e |
| 9 | SG9-TDF-450 | Stainless Steel with single-side gold-plated | 0.08 | 450 | 516261633462676269 |
| 10 | 10-TDF-450 | Stainless Steel | 0.1 | 450 | 5e6d6e6c3b6d686d6d |
| 15.2 | DN15.2-TDF-450 | Stainless Steel with double-side nickel-plated | 0.12 | 450 | 5b686b693e686c686e |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 9 | 9-TDF-480 | Stainless Steel | 0.1 | 480 | 231013114610151014 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 6 | 6-TDF-500 | Stainless Steel | 0.08 | 500 | 122122207721272125 |
| 7 | 7-TDF-500 | Stainless Steel | 0.08 | 500 | 112221237422242229 |
Products list [Trip force ]
| A Diameter (mm) | Partnumber | Material | Thickness (mm) | Trip force (g) | C Height (mm) |
|---|---|---|---|---|---|
| 8 | 8-TDF-550 | Stainless Steel | 0.08 | 550 | 3f0c0f0d5a0c090c07 |
| 10 | 10-TDF-550 | Stainless Steel | 0.1 | 550 | 2d1e1d1f481e1a |
Entity
Product showcase
