Company Profile

".




SHENZHEN QUANTONGSHENG TECHNOLOGY CO. LTD is a supplier of Metal Dome, Metal Keypad Shrapnel, Metal Keypad Shrapnel, Mobile Phone Keypad Shrapnel, Mobile Phone Pot Shrapnel, Keypad Shrapnel, Membrane Switch Shrapnel, Metal Shrapnel with Assembly (Pot Shrapnel with Assembly), Metal Dome for many years. all over the world.

We are pleased to offer you our products at affordable prices and on-time delivery, and we are customer-oriented and dedicated to serving you. Our products include all kinds of metal shrapnel (pot shrapnel), switch shrapnel, button shrapnel, cell phone shrapnel, membrane switch, shrapnel sticker (pot shrapnel sticker), metal shrapnel (pot shrapnel with mount), Metal Dome and so on. The raw material is made of imported stainless steel, which has good corrosion resistance, product stability and service life.

The products are widely used in various key switches such as cell phones, digital appliances, various home appliances, consumer electronics, medical devices, instruments and meters, etc.

corporate culture

Corporate mission

Customer-centric, providing competitive products and services to continuously create maximum value for our customers.


Corporate vision

People-oriented, create the future together. Long-term commitment to the industry in this field, to become the industry leader.


Corporate values

Focus on professionalism, strive for excellence. Integrity first. Mutual benefit and win-win. Transcend ourselves and pursue excellence.

Manufacturing and quality management

生产线

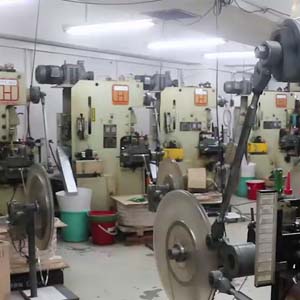

Production line



Automatic continuous production, stable production, reliable quality.

检测仪器

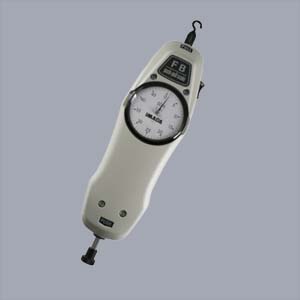

Testing instruments



Pressure test according to the specifications of the spring.

寿命测试

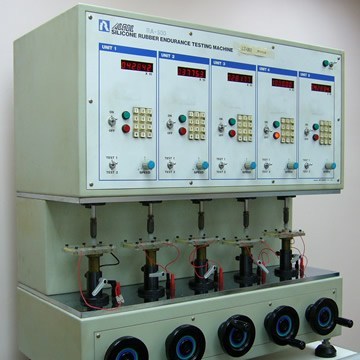

Life test



Test the service life of metal dome according to the specifications of metal dome.

负荷测量曲线仪

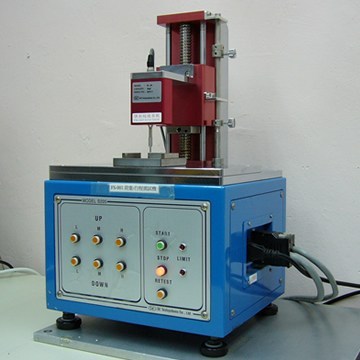

Load measurement curver



According to the pressure characteristics of spring, comparative test analysis

Our advantage

精密不锈钢材料

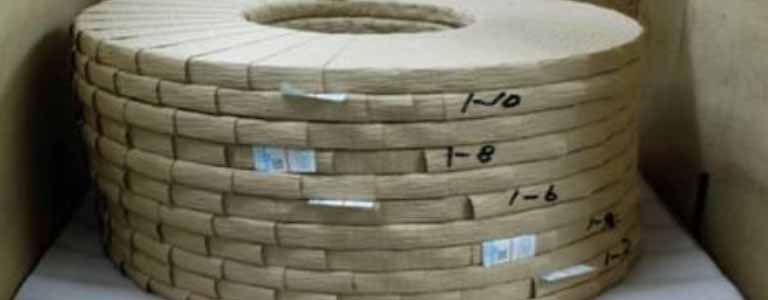

Material

Our Metal Dome is usually made of 304 stainless steel. This material has a low carbon content (0.08%) and high oxidation resistance. The thickness of the material is 0.06mm, 0.08mm, 0.10mm and 0.12mm respectively; the hardness of the material is between Hv-380 and Hv-420. Japanese imported stainless steel.

模具

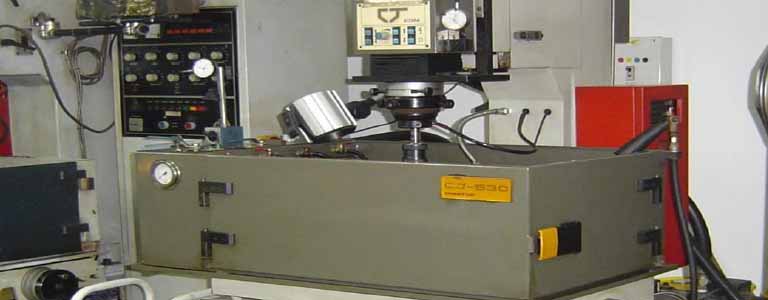

Mold

We have three sets of molds for each shrapnel size to meet the different pressure requirements of our customers and the different thickness and hardness of our materials. The standard pressure range of our products is 100g to 600g. We can also produce other types of shrapnel with pressures outside the standard range according to individual customer requirements.
寿命

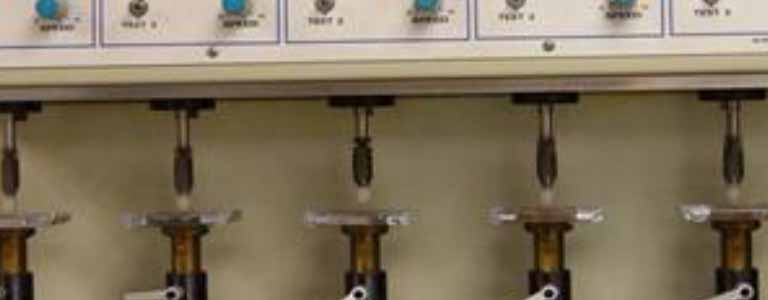

Life cycle test

Our Metal Dome life test results are stable, with a maximum of 1,000,000 cycles of shrapnel life. When testing the life of the shrapnel, it should be noted that the material and condition of the shrapnel plane, the design of the test head, and the pressure applied when pressing the shrapnel may affect the test results.


Business processes

  • 1

    Product consultation and product selection

  • 2

    Sample testing and sample confirmation

  • 3

    Order procurement and production scheduling

  • 4

    Product delivery and after-sales service
