4-LEG   Family   Four-Leg Metal Dome

Four-Leg Metal Dome metal dome

Drawing

Four-Leg Metal Dome metal dome

Entity


Products list

Trip force Material Height

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 6-4-LEG-120 Stainless Steel 0.06 120 261516144315151510
6 DN6-4-LEG-140 Stainless Steel with double-side nickel-plated 0.06 140 3b080b095e0808080e
6 6-4-LEG-140(1.6M) Stainless Steel 0.06 140 5c6f6c6e396f6f6f68
6 6-4-LEG-140 Stainless Steel 0.06 140 2c1f1c1e491f1f1f18
6 DN6-4-LEG-170 Stainless Steel with double-side nickel-plated 0.06 170 0f3c3f3d6a3c3b3c3e
6 SG6-4-LEG-170 Stainless Steel with single-side gold-plated 0.06 170 25161517401611
6 6-4-LEG-170 Stainless Steel 0.06 170 3b080b095e080f080a
6 DN6-4-LEG-200 Stainless Steel with double-side nickel-plated 0.06 200 3f0c0f0d5a0c0b0c08
6 6-4-LEG-200 Stainless Steel 0.06 200 457675772076717676
6 DN6-4-LEG-230 Stainless Steel with double-side nickel-plated 0.06 230 3b080b095e080f0803
6 SG6-4-LEG-230 Stainless Steel with single-side gold-plated 0.06 230 1c2f2c2e792f282f2b
6 6-4-LEG-230 Stainless Steel 0.06 230 3f0c0f0d5a0c0b0c08
6 SG6-4-LEG-250 Stainless Steel with single-side gold-plated 0.06 250 211211134412141215
6 6-4-LEG-280 Stainless Steel 0.06 280 42717270277177
7 SG7-4-LEG-180 Stainless Steel with single-side gold-plated 0.06 180 390a090b5c0a0d0a0b
7 7-4-LEG-180 Stainless Steel 0.06 180 5f6c6f6d3a6c6b6c6c
7 DN7-4-LEG-200 Stainless Steel with double-side nickel-plated 0.06 200 261516144315121512
7 7-4-LEG-200 Stainless Steel 0.06 200 546764663167606760
7 7-4-LEG-220 Stainless Steel 0.08 220 24171416411717171d
7 7-4-LEG-250 Stainless Steel 0.08 250 320102005701060101
7 DN7-4-LEG-280 Stainless Steel with double-side nickel-plated 0.08 280 3d0e0d0f580e090e09
7 7-4-LEG-280 Stainless Steel 0.08 280 211211134412151214
7 DN7-4-LEG-320 Stainless Steel with double-side nickel-plated 0.08 320 2f1c1f1d4a1c1b1c1a
7 7-4-LEG-320 Stainless Steel 0.08 320 16252624732522252e
7 DN7-4-LEG-350 Stainless Steel with double-side nickel-plated 0.08 350 1e2d2e2c7b2d2a2d2a
7 7-4-LEG-350 Stainless Steel 0.08 350 380b080a5d0b0c0b01
7 DN7-4-LEG-400 Stainless Steel with double-side nickel-plated 0.08 400 300300025503040309
7 7-4-LEG-400 Stainless Steel 0.08 400 1a292a287f292f292b
8.4 SG8.4-4-LEG-150 Stainless Steel with single-side gold-plated 0.08 150 0c3f3c3e693f383f3e
8.4 8.4-4-LEG-150 Stainless Steel 0.08 150 5e6d6e6c3b6d6a6d6f
8.4 8.4-4-LEG-180 Stainless Steel 0.08 180 221112104711161111
8.4 DN8.4-4-LEG-200 Stainless Steel with double-side nickel-plated 0.08 200 3a090a085f090e090e
8.4 SG8.4-4-LEG-200 Stainless Steel with single-side gold-plated 0.08 200 370407055204030405
8.4 8.4-4-LEG-200 Stainless Steel 0.08 200 3d0e0d0f580e090e09
8.4 8.4-4-LEG-260 Stainless Steel 0.08 260 231013114610171015
8.4 DN8.4-4-LEG-280 Stainless Steel with double-side nickel-plated 0.08 280 1e2d2e2c7b2d2a2d26
8.4 SG8.4-4-LEG-280 Stainless Steel with single-side gold-plated 0.08 280 2c1f1c1e491f181f14
8.4 8.4-4-LEG-280 Stainless Steel 0.08 280 62515250075156515a
8.4 8.4-4-LEG-320 Stainless Steel 0.08 320 407370722573757371
8.4 DN8.4-4-LEG-350 Stainless Steel with double-side nickel-plated 0.08 350 546764663167616760
8.4 SG8.4-4-LEG-350 Stainless Steel with single-side gold-plated 0.08 350 4d7e7d7f287e787e79
8.4 8.4-4-LEG-350 Stainless Steel 0.08 350 536063613660666067
8.4 DN8.4-4-LEG-400 Stainless Steel with double-side nickel-plated 0.08 400 0d3e3d3f683e383e3b
8.4 SG8.4-4-LEG-400 Stainless Steel with single-side gold-plated 0.08 400 457675772076707672
8.4 8.4-4-LEG-400 Stainless Steel 0.08 400 54676466316761676c
8.4 8.4-4-LEG-450 Stainless Steel 0.08 450 1c2f2c2e792f2a
10 10-4-LEG-150 Stainless Steel 0.08 150 447774762177707771
10 10-4-LEG-180 Stainless Steel 0.08 180 32010200570106010a
10 DN10-4-LEG-200 Stainless Steel with double-side nickel-plated 0.08 200 64575456015751
10 SG10-4-LEG-200 Stainless Steel with single-side gold-plated 0.08 200 37040705520402
10 10-4-LEG-200 Stainless Steel 0.08 200 4e7d7e7c2b7d7a7d77
10 DN10-4-LEG-280 Stainless Steel with double-side nickel-plated 0.1 280 1f2c2f2d7a2c2a2c2d
10 SG10-4-LEG-280 Stainless Steel with single-side gold-plated 0.1 280 261516144315131517
10 10-4-LEG-280 Stainless Steel 0.1 280 457675772076707674
10 DN10-4-LEG-320 Stainless Steel with double-side nickel-plated 0.1 320 4a797a782f797f7979
10 SG10-4-LEG-320 Stainless Steel with single-side gold-plated 0.1 320 390a090b5c0a0c0a0b
10 10-4-LEG-320 Stainless Steel 0.1 320 487b787a2d7b7d7b7c
10 10-4-LEG-340 Stainless Steel 0.1 340 5c6f6c6e396f696f6a
10 DN10-4-LEG-350 Stainless Steel with double-side nickel-plated 0.1 350 32010200570104
10 SG10-4-LEG-350 Stainless Steel with single-side gold-plated 0.1 350 447774762177717777
10 10-4-LEG-350 Stainless Steel 0.1 350 1b282b297e282e282d
10 DN10-4-LEG-400 Stainless Steel with double-side nickel-plated 0.1 400 42717270277174
10 SG10-4-LEG-400 Stainless Steel with single-side gold-plated 0.1 400 32010200570104
10 10-4-LEG-400 Stainless Steel 0.1 400 15262527702623
10 10-4-LEG-450 Stainless Steel 0.1 450 24171416411713
12 DN12.2-4-LEG-150 Stainless Steel with double-side nickel-plated 0.1 150 0a393a386f393e3933
12 SG12.2-4-LEG-150 Stainless Steel with single-side gold-plated 0.1 150 467576742375727571
12 12.2-4-LEG-150 Stainless Steel 0.1 150 33000301560007000a
12 DN12.2-4-LEG-200 Stainless Steel with double-side nickel-plated 0.1 200 152625277026202624
12 SG12.2-4-LEG-200 Stainless Steel with single-side gold-plated 0.1 200 2e1d1e1c4b1d1b1d1c
12 12.2-4-LEG-200 Stainless Steel 0.1 200 586b686a3d6b6d6b69
12 12.2-4-LEG-240 Stainless Steel 0.1 240 615251530452545252
12 DN12.2-4-LEG-250 Stainless Steel with double-side nickel-plated 0.1 250 1d2e2d2f782e282e2b
12 DN12.2-4-LEG-280 Stainless Steel with double-side nickel-plated 0.1 280 605350520553555358
12 SG12.2-4-LEG-280 Stainless Steel with single-side gold-plated 0.1 280 310201035402040209
12 12.2-4-LEG-280 Stainless Steel 0.1 280 0b383b396e383e3833
12 DN12.2-4-LEG-320 Stainless Steel with double-side nickel-plated 0.1 320 2b181b194e181d1818
12 SG12.2-4-LEG-320 Stainless Steel with single-side gold-plated 0.1 320 546764663167626767
12 12.2-4-LEG-320 Stainless Steel 0.1 320 350605075006030606
12 12.2-4-LEG-340 Stainless Steel 0.1 340 0f3c3f3d6a3c393c39
12 DN12.2-4-LEG-350 Stainless Steel with double-side nickel-plated 0.1 350 4e7d7e7c2b7d787d78
12 SG12.2-4-LEG-350 Stainless Steel with single-side gold-plated 0.1 350 4e7d7e7c2b7d787d78
12 12.2-4-LEG-350 Stainless Steel 0.1 350 370407055204010400
12 DN12.2-4-LEG-400 Stainless Steel with double-side nickel-plated 0.1 400 281b181a4d1b1f
12 SG12.2-4-LEG-400 Stainless Steel with single-side gold-plated 0.1 400 34070406510703
12 12.2-4-LEG-400 Stainless Steel 0.1 400 5a696a683f696d696b
12 DN12.2-4-LEG-450 Stainless Steel with double-side nickel-plated 0.1 450 2d1e1d1f481e1a1e18
12 SG12.2-4-LEG-450 Stainless Steel with single-side gold-plated 0.1 450 152625277026222620
12 12.2-4-LEG-450 Stainless Steel 0.1 450 2e1d1e1c4b1d191d1d
12 SG12.2-4-LEG-680(3.2M) Stainless Steel with single-side gold-plated 0.12 680 0c3f3c3e693f343f35
12 12.2-4-LEG-700 Stainless Steel 0.12 700 6457545601575c5755
12.2 DN12.2-4-LEG-280T Stainless Steel with double-side nickel-plated 0.12 280 132023217620242020
12.2 SG12.2-4-LEG-280T Stainless Steel with single-side gold-plated 0.12 280 300300025503070303
12.2 DN12.2-4-LEG-340T Stainless Steel with double-side nickel-plated 0.12 340 112221237422262226
12.2 SG12.2-4-LEG-340T Stainless Steel with single-side gold-plated 0.12 340 487b787a2d7b7f7b7f
12.2 DN12.2-4-LEG-400T Stainless Steel with double-side nickel-plated 0.12 400 596a696b3c6a616a69
12.2 SG12.2-4-LEG-400T Stainless Steel with single-side gold-plated 0.12 400 3407040651070c0704
12.2 DN12.2-4-LEG-450T Stainless Steel with double-side nickel-plated 0.12 450 3704070552040f0405
12.2 SG12.2-4-LEG-450T Stainless Steel with single-side gold-plated 0.12 450 2714171542141f1415

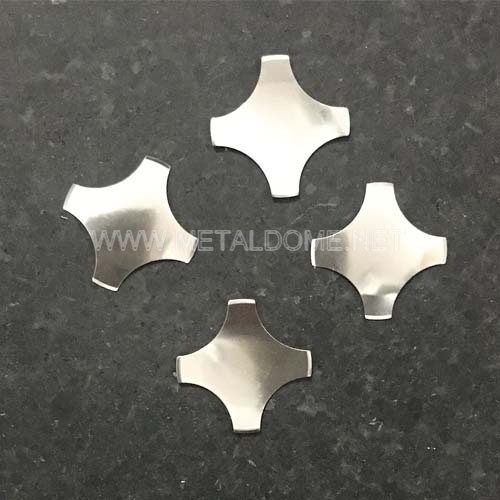

14.2 DN14-4-LEG-350 Stainless Steel with double-side nickel-plated 0.12 350 221112104711151110

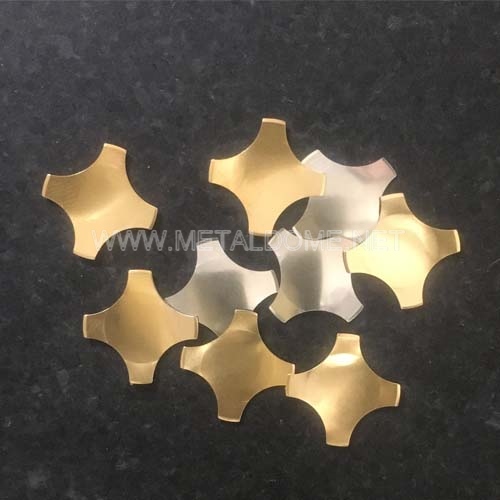

14.2 SG14-4-LEG-350 Stainless Steel with single-side gold-plated 0.12 350 201310124513171312
14.2 14-4-LEG-350 Stainless Steel 0.12 350 300300025503070302
14.2 DN14-4-LEG-400 Stainless Steel with double-side nickel-plated 0.12 400 3e0d0e0c5b0d090d0a
14.2 SG14-4-LEG-400 Stainless Steel with single-side gold-plated 0.12 400 380b080a5d0b0f0b0c
14.2 14-4-LEG-400 Stainless Steel 0.12 400 271417154214101411
16 DN16-4-LEG-280 Stainless Steel with double-side nickel-plated 0.12 280 546764663167636767
16 16-4-LEG-280 Stainless Steel 0.12 280 1d2e2d2f782e2a2e2b
16 DN16-4-LEG-350 Stainless Steel with double-side nickel-plated 0.12 350 3e0d0e0c5b0d090d09
16 SG16-4-LEG-350 Stainless Steel with single-side gold-plated 0.12 350 516261633462696263
16 16-4-LEG-350 Stainless Steel 0.12 350 1d2e2d2f782e25
16 DN16-4-LEG-400 Stainless Steel with double-side nickel-plated 0.12 400 0a393a386f39323939
16 SG16-4-LEG-400 Stainless Steel with single-side gold-plated 0.12 400 2f1c1f1d4a1c171c1d
16 16-4-LEG-400 Stainless Steel 0.12 400 516261633462696263
16 16-4-LEG-600 Stainless Steel 0.12 600 3506050750060c0603
16 DN16-4-LEG-700 Stainless Steel with double-side nickel-plated 0.12 700 192a282b7c2a28
16 16-4-LEG-700 Stainless Steel 0.12 700 3e0d0f0c5b0d0e0d0b
19.86 DN20-4-LEG-220 Stainless Steel with double-side nickel-plated 0.12 220 4e7d7e7c2b7d777d76
19.86 20-4-LEG-220 Stainless Steel 0.12 220 5f6c6f6d3a6c666c67
19.86 20-4-LEG-280 Stainless Steel 0.12 280 0e3d3f
19.86 DN20-4-LEG-400 Stainless Steel with double-side nickel-plated 0.12 400 0b383a396e383b3833

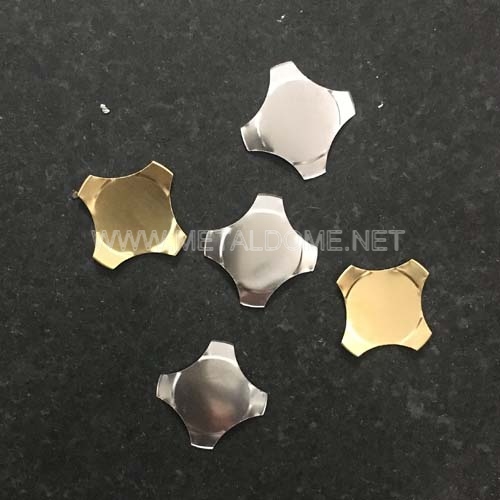

19.86 SG20-4-LEG-400 Stainless Steel with single-side gold-plated 0.12 400 300301025503000305
19.86 20-4-LEG-400 Stainless Steel 0.12 400 4f7c7e7d2a7c7f7c7a
19.86 20-4-LEG-500 Stainless Steel 0.12 500 370406055204040401
19.86 20-4-LEG-600 Stainless Steel 0.12 600 5f6c6e6d3a6c6b6c6d
35 35-4-LEG-380 Stainless Steel 0.15 380 1724262572242f

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 6-4-LEG-120 Stainless Steel 0.06 120 2e1d1e1c4b1d1d1d18

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 DN6-4-LEG-140 Stainless Steel with double-side nickel-plated 0.06 140 5c6f6c6e396f6f6f69
6 6-4-LEG-140(1.6M) Stainless Steel 0.06 140 546764663167676760
6 6-4-LEG-140 Stainless Steel 0.06 140 437073712670707077

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
8.4 SG8.4-4-LEG-150 Stainless Steel with single-side gold-plated 0.08 150 340704065107000706
8.4 8.4-4-LEG-150 Stainless Steel 0.08 150 0a393a386f393e393b
10 10-4-LEG-150 Stainless Steel 0.08 150 0f3c3f3d6a3c3b3c3a
12 DN12.2-4-LEG-150 Stainless Steel with double-side nickel-plated 0.1 150 43707371267077707a
12 SG12.2-4-LEG-150 Stainless Steel with single-side gold-plated 0.1 150 281b181a4d1b1c1b1f
12 12.2-4-LEG-150 Stainless Steel 0.1 150 615251530452555258

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 DN6-4-LEG-170 Stainless Steel with double-side nickel-plated 0.06 170 497a797b2c7a7d7a78
6 SG6-4-LEG-170 Stainless Steel with single-side gold-plated 0.06 170 4e7d7e7c2b7d7a
6 6-4-LEG-170 Stainless Steel 0.06 170 320102005701060103

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
7 SG7-4-LEG-180 Stainless Steel with single-side gold-plated 0.06 180 4d7e7d7f287e797e7f
7 7-4-LEG-180 Stainless Steel 0.06 180 251615174016111616
8.4 8.4-4-LEG-180 Stainless Steel 0.08 180 3a090a085f090e0909
10 10-4-LEG-180 Stainless Steel 0.08 180 3b080b095e080f0803

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 DN6-4-LEG-200 Stainless Steel with double-side nickel-plated 0.06 200 241714164117101713
6 6-4-LEG-200 Stainless Steel 0.06 200 3c0f0c0e590f080f0f
7 DN7-4-LEG-200 Stainless Steel with double-side nickel-plated 0.06 200 360506045305020502
7 7-4-LEG-200 Stainless Steel 0.06 200 5a696a683f696e696e
8.4 DN8.4-4-LEG-200 Stainless Steel with double-side nickel-plated 0.08 200 407370722573747374
8.4 SG8.4-4-LEG-200 Stainless Steel with single-side gold-plated 0.08 200 0b383b396e383f3839
8.4 8.4-4-LEG-200 Stainless Steel 0.08 200 477477752274737473
10 DN10-4-LEG-200 Stainless Steel with double-side nickel-plated 0.08 200 1b282b297e282e
10 SG10-4-LEG-200 Stainless Steel with single-side gold-plated 0.08 200 30030002550305
10 10-4-LEG-200 Stainless Steel 0.08 200 3a090a085f090e0903
12 DN12.2-4-LEG-200 Stainless Steel with double-side nickel-plated 0.1 200 407370722573757371
12 SG12.2-4-LEG-200 Stainless Steel with single-side gold-plated 0.1 200 241714164117111716
12 12.2-4-LEG-200 Stainless Steel 0.1 200 271417154214121416

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
7 7-4-LEG-220 Stainless Steel 0.08 220 46757674237575757f
19.86 DN20-4-LEG-220 Stainless Steel with double-side nickel-plated 0.12 220 3d0e0d0f580e040e05
19.86 20-4-LEG-220 Stainless Steel 0.12 220 2c1f1c1e491f151f14

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 DN6-4-LEG-230 Stainless Steel with double-side nickel-plated 0.06 230 5f6c6f6d3a6c6b6c67
6 SG6-4-LEG-230 Stainless Steel with single-side gold-plated 0.06 230 427172702771767175
6 6-4-LEG-230 Stainless Steel 0.06 230 231013114610171014

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
12 12.2-4-LEG-240 Stainless Steel 0.1 240 5c6f6c6e396f696f6f

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 SG6-4-LEG-250 Stainless Steel with single-side gold-plated 0.06 250 4b787b792e787e787f
7 7-4-LEG-250 Stainless Steel 0.08 250 447774762177707777
12 DN12.2-4-LEG-250 Stainless Steel with double-side nickel-plated 0.1 250 0b383b396e383e383d

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
8.4 8.4-4-LEG-260 Stainless Steel 0.08 260 5c6f6c6e396f686f6a

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
6 6-4-LEG-280 Stainless Steel 0.06 280 497a797b2c7a7c
7 DN7-4-LEG-280 Stainless Steel with double-side nickel-plated 0.08 280 4e7d7e7c2b7d7a7d7a
7 7-4-LEG-280 Stainless Steel 0.08 280 201310124513141315
8.4 DN8.4-4-LEG-280 Stainless Steel with double-side nickel-plated 0.08 280 4d7e7d7f287e797e75
8.4 SG8.4-4-LEG-280 Stainless Steel with single-side gold-plated 0.08 280 0e3d3e3c6b3d3a3d36
8.4 8.4-4-LEG-280 Stainless Steel 0.08 280 0e3d3e3c6b3d3a3d36
10 DN10-4-LEG-280 Stainless Steel with double-side nickel-plated 0.1 280 360506045305030504
10 SG10-4-LEG-280 Stainless Steel with single-side gold-plated 0.1 280 467576742375737577
10 10-4-LEG-280 Stainless Steel 0.1 280 2b181b194e181e181a
12 DN12.2-4-LEG-280 Stainless Steel with double-side nickel-plated 0.1 280 47747775227472747f
12 SG12.2-4-LEG-280 Stainless Steel with single-side gold-plated 0.1 280 0b383b396e383e3833
12 12.2-4-LEG-280 Stainless Steel 0.1 280 211211134412141219
12.2 DN12.2-4-LEG-280T Stainless Steel with double-side nickel-plated 0.12 280 4a797a782f797d7979
12.2 SG12.2-4-LEG-280T Stainless Steel with single-side gold-plated 0.12 280 102320227523272323
16 DN16-4-LEG-280 Stainless Steel with double-side nickel-plated 0.12 280 320102005701050101
16 16-4-LEG-280 Stainless Steel 0.12 280 596a696b3c6a6e6a6f
19.86 20-4-LEG-280 Stainless Steel 0.12 280 281b19

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
7 DN7-4-LEG-320 Stainless Steel with double-side nickel-plated 0.08 320 635053510650575056
7 7-4-LEG-320 Stainless Steel 0.08 320 300300025503040308
8.4 8.4-4-LEG-320 Stainless Steel 0.08 320 360506045305030507
10 DN10-4-LEG-320 Stainless Steel with double-side nickel-plated 0.1 320 3a090a085f090f0909
10 SG10-4-LEG-320 Stainless Steel with single-side gold-plated 0.1 320 645754560157515756
10 10-4-LEG-320 Stainless Steel 0.1 320 142724267127212720
12 DN12.2-4-LEG-320 Stainless Steel with double-side nickel-plated 0.1 320 330003015600050000
12 SG12.2-4-LEG-320 Stainless Steel with single-side gold-plated 0.1 320 271417154214111414
12 12.2-4-LEG-320 Stainless Steel 0.1 320 457675772076737676

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
10 10-4-LEG-340 Stainless Steel 0.1 340 4f7c7f7d2a7c7a7c79
12 12.2-4-LEG-340 Stainless Steel 0.1 340 536063613660656065
12.2 DN12.2-4-LEG-340T Stainless Steel with double-side nickel-plated 0.12 340 370407055204000400
12.2 SG12.2-4-LEG-340T Stainless Steel with single-side gold-plated 0.12 340 596a696b3c6a6e6a6e

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
7 DN7-4-LEG-350 Stainless Steel with double-side nickel-plated 0.08 350 487b787a2d7b7c7b7c
7 7-4-LEG-350 Stainless Steel 0.08 350 1f2c2f2d7a2c2b2c26
8.4 DN8.4-4-LEG-350 Stainless Steel with double-side nickel-plated 0.08 350 407370722573757374
8.4 SG8.4-4-LEG-350 Stainless Steel with single-side gold-plated 0.08 350 5c6f6c6e396f696f68
8.4 8.4-4-LEG-350 Stainless Steel 0.08 350 4c7f7c7e297f797f78
10 DN10-4-LEG-350 Stainless Steel with double-side nickel-plated 0.1 350 44777476217772
10 SG10-4-LEG-350 Stainless Steel with single-side gold-plated 0.1 350 536063613660666060
10 10-4-LEG-350 Stainless Steel 0.1 350 586b686a3d6b6d6b6e
12 DN12.2-4-LEG-350 Stainless Steel with double-side nickel-plated 0.1 350 477477752274717471
12 SG12.2-4-LEG-350 Stainless Steel with single-side gold-plated 0.1 350 162526247325202520
12 12.2-4-LEG-350 Stainless Steel 0.1 350 4a797a782f797c797d
14.2 DN14-4-LEG-350 Stainless Steel with double-side nickel-plated 0.12 350 0b383b396e383c3839
14.2 SG14-4-LEG-350 Stainless Steel with single-side gold-plated 0.12 350 457675772076727677
14.2 14-4-LEG-350 Stainless Steel 0.12 350 231013114610141011
16 DN16-4-LEG-350 Stainless Steel with double-side nickel-plated 0.12 350 5f6c6f6d3a6c686c68
16 SG16-4-LEG-350 Stainless Steel with single-side gold-plated 0.12 350 3d0e0d0f580e050e0f
16 16-4-LEG-350 Stainless Steel 0.12 350 1526252770262d

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
35 35-4-LEG-380 Stainless Steel 0.15 380 4675777423757e

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
7 DN7-4-LEG-400 Stainless Steel with double-side nickel-plated 0.08 400 1c2f2c2e792f282f25
7 7-4-LEG-400 Stainless Steel 0.08 400 2c1f1c1e491f191f1d
8.4 DN8.4-4-LEG-400 Stainless Steel with double-side nickel-plated 0.08 400 350605075006000603
8.4 SG8.4-4-LEG-400 Stainless Steel with single-side gold-plated 0.08 400 477477752274727470
8.4 8.4-4-LEG-400 Stainless Steel 0.08 400 182b282a7d2b2d2b20
10 DN10-4-LEG-400 Stainless Steel with double-side nickel-plated 0.1 400 497a797b2c7a7f
10 SG10-4-LEG-400 Stainless Steel with single-side gold-plated 0.1 400 64575456015752
10 10-4-LEG-400 Stainless Steel 0.1 400 0b383b396e383d
12 DN12.2-4-LEG-400 Stainless Steel with double-side nickel-plated 0.1 400 2c1f1c1e491f1b
12 SG12.2-4-LEG-400 Stainless Steel with single-side gold-plated 0.1 400 3f0c0f0d5a0c08
12 12.2-4-LEG-400 Stainless Steel 0.1 400 0e3d3e3c6b3d393d3f
12.2 DN12.2-4-LEG-400T Stainless Steel with double-side nickel-plated 0.12 400 390a090b5c0a010a09
12.2 SG12.2-4-LEG-400T Stainless Steel with single-side gold-plated 0.12 400 0d3e3d3f683e353e3d
14.2 DN14-4-LEG-400 Stainless Steel with double-side nickel-plated 0.12 400 162526247325212522
14.2 SG14-4-LEG-400 Stainless Steel with single-side gold-plated 0.12 400 3a090a085f090d090e
14.2 14-4-LEG-400 Stainless Steel 0.12 400 407370722573777376
16 DN16-4-LEG-400 Stainless Steel with double-side nickel-plated 0.12 400 2417141641171c1717
16 SG16-4-LEG-400 Stainless Steel with single-side gold-plated 0.12 400 1e2d2e2c7b2d262d2c
16 16-4-LEG-400 Stainless Steel 0.12 400 3300030156000b0001
19.86 DN20-4-LEG-400 Stainless Steel with double-side nickel-plated 0.12 400 192a282b7c2a292a21
19.86 SG20-4-LEG-400 Stainless Steel with single-side gold-plated 0.12 400 4f7c7e7d2a7c7f7c7a
19.86 20-4-LEG-400 Stainless Steel 0.12 400 417270732472717274

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
8.4 8.4-4-LEG-450 Stainless Steel 0.08 450 0d3e3d3f683e3b
10 10-4-LEG-450 Stainless Steel 0.1 450 4a797a782f797d
12 DN12.2-4-LEG-450 Stainless Steel with double-side nickel-plated 0.1 450 0c3f3c3e693f3b3f39
12 SG12.2-4-LEG-450 Stainless Steel with single-side gold-plated 0.1 450 407370722573777375
12 12.2-4-LEG-450 Stainless Steel 0.1 450 5e6d6e6c3b6d696d6d
12.2 DN12.2-4-LEG-450T Stainless Steel with double-side nickel-plated 0.12 450 6350535106505b5051
12.2 SG12.2-4-LEG-450T Stainless Steel with single-side gold-plated 0.12 450 3201020057010a0100

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
19.86 20-4-LEG-500 Stainless Steel 0.12 500 546765663167676762

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
16 16-4-LEG-600 Stainless Steel 0.12 600 407370722573797376
19.86 20-4-LEG-600 Stainless Steel 0.12 600 2c1f1d1e491f181f1e

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
12 SG12.2-4-LEG-680(3.2M) Stainless Steel with single-side gold-plated 0.12 680 5c6f6c6e396f646f65

Products list [Trip force ]

A Diameter (mm) Partnumber Material Thickness (mm) Trip force (g) C Height (mm)
12 12.2-4-LEG-700 Stainless Steel 0.12 700 5764676532646f6466
16 DN16-4-LEG-700 Stainless Steel with double-side nickel-plated 0.12 700 0a393b386f393b
16 16-4-LEG-700 Stainless Steel 0.12 700 231012114610131016

Entity

4-LEG metal dome

Product showcase

4-LEG metal dome
4-LEG metal dome
4-LEG metal dome
